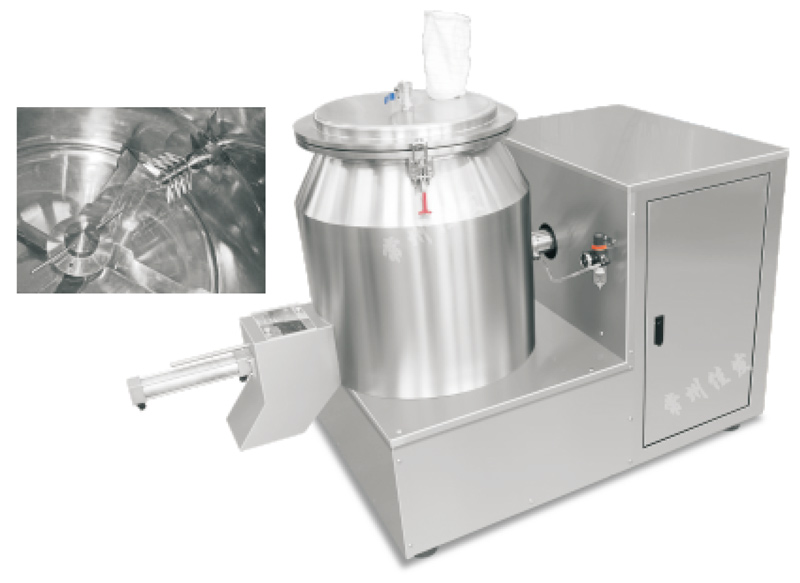

ZGH vertical high-speed mixer
The ZGH vertical high-speed mixer is specially designed for powder or low humidity materials, with high efficiency, uniformity, and no dead corners in mixing; The material contact part of this machine is made of stainless steel, and the mixing shaft is equipped with a sealing device, which can effectively prevent material leakage and ensure the service life of bearings and various transmission components.
13606122988
Details

Summary

  The ZGH vertical high-speed mixer is specially designed for powder or low humidity materials, with high efficiency, uniformity, and no dead corners in mixing;

  The material contact part of this machine is made of stainless steel, and the mixing shaft is equipped with a sealing device, which can effectively prevent material leakage and ensure the service life of bearings and various transmission components.


Equipment characteristics

  The ZGH vertical high-speed mixer is a high-efficiency mixer newly developed by our company, integrating domestic and foreign technologies. Its main characteristics are as follows:

★ Utilize the centrifugal force formed by the vertical high-speed rotating blades installed at the bottom of the machine body to act on the material, causing it to form a vortex shape with the periphery rolling upwards and the center sinking downwards, so that the inner and outer rings of the material, as well as the upper and lower layers, are fully stirred and mixed.

★ Utilize high-speed crushing blades installed on the side wall of the machine to crush the materials that have rolled up from the outer ring, while also playing a disturbance role, increasing the relative movement between materials and improving the mixing effect.

★ Due to the combined action of the two types of blades mentioned above, the material can be fully and uniformly mixed in a short period of time, and its efficiency is incomparable to other domestic mixers.

★ The mixing bin has no dead corners, fast feeding, and is easy to clean,

★ The material contact parts of the machine are all made of stainless steel, and there will be no volatilization, deterioration, or loss of materials during the mixing process, ensuring the process ratio requirements.

★ This machine is suitable for mixing dry and wet materials of different proportions, especially suitable for mixing and stirring various complex materials such as chicken essence, pharmaceutical granules, beverage granules, etc.


Parameters

Model

Working volume(L)

Mixing weight (kg/time)

Installed power (KW)

Weight (Kg)

Overall dimensions (mm)

ZGH-350
350
150
7.37
600
1500×1090×1200
ZGH-400
400
200
8.07
650
1500×1090×1300
ZGH-850
850
400
10.87
850
1718×1320×1400

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
